KHN95531COR-HT Customized LED display
Since 1999, We only produce 7 segment LED display, Customized LED Display, LED dot matrix, LED bar graph,
LED diode and SMD LED.
1. 光電參數 Electrical Optical characteristics (Ta = 25℃):
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
|
參數名稱 |
符號 |
最小值 |
典型值 |
最大值 |
單位 |
測試條件 |
|
Luminous Intensity |
IV |
120/120 |
|
130/130
|
mcd |
IF=20mA |
|
發光亮度 |
||||||
|
Peak Wavelength |
lｐ |
|
|
|
nm |
IF=20mA |
|
峰值波長 |
||||||
|
Dominant Wavelength |
lｄ |
600/620 |
|
605/625 |
nm |
IF=20mA |
|
主波長 |
||||||
|
Forward Voltage |
Vf |
2.0/2.0
|
|
2.5/2.5
|
V |
IF=20mA |
|
正向電壓 |
||||||
|
Reverse Current |
IR |
|
|
50 |
uA |
VR=5V |
|
反向漏電流 |
||||||
|
Suggestion Forward Current |
IF |
3 |
5-10 |
15 |
mA |
|
|
(建議)使用正向電流 |
2. 外型尺寸(Package Dimension):

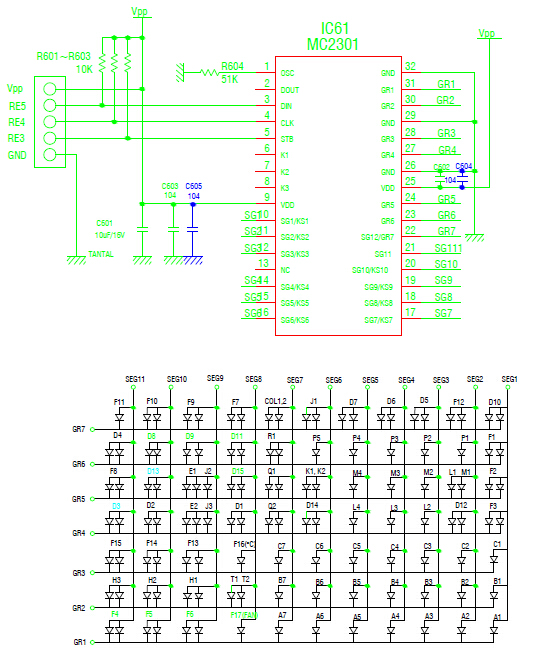

3. 電路原理圖(Internal Circuit Diagram):
