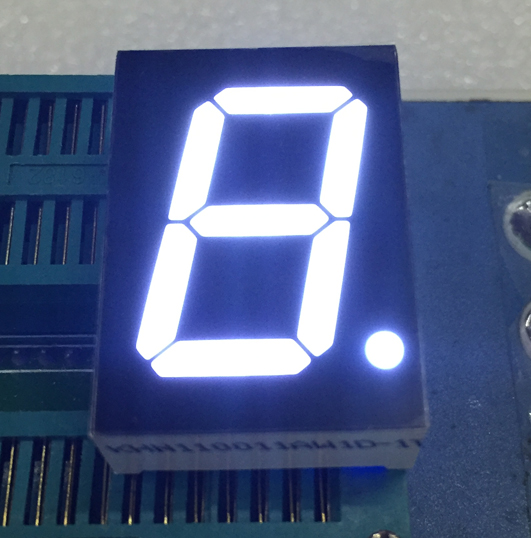

KHN110011AW1D-1T 1 digit 1 inch White color LED display module
Since 1999, We only produce 7 segment LED display, LED dot matrix, LED bar graph, LED diode and SMD LED.
1. 光電參數 Electrical Optical characteristics (Ta = 25℃):
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
|
參數名稱 |
符號 |
最小值 |
典型值 |
最大值 |
單位 |
測試條件 |
|
Luminous Intensity |
IV |
|
200 |
|
mcd |
IF=20mA |
|
發光亮度 |
||||||
|
Chromaticity Coordinates |
lｄ |
|
X:0.27 Y:0.30
|
|
|
IF=20mA |
|
色度坐标 |
||||||
|
Color Temperature |
Tc |
|
12000 |
|
K |
IF=20mA |
|
色温 |
||||||
|
Forward Voltage |
Vf |
2.7 |
|
3.6 |
V |
IF=20mA |
|
正向電壓 |
||||||
|
Reverse Current |
IR |
|
|
50 |
uA |
VR=5V |
|
反向漏電流 |
||||||
|
Suggestion Forward Current |
IF |
3 |
5-10 |
15 |
mA |
|
|
(建議)使用正向電流 |
2. 外型尺寸(Package Dimension):
3. 電路原理圖(Internal Circuit Diagram):
