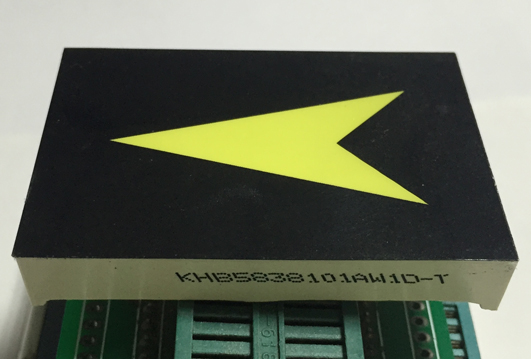

KHB5838101AW1D-T LED arrow display



Since 1999, We only produce 7 segment LED display, LED dot matrix, LED bar graph, LED diode and SMD LED.



1.  光電參數 Electrical Optical characteristics (Ta = 25):

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

參數名稱

符號

最小值

典型值

最大值

單位

測試條件

Luminous Intensity

IV


        200

mcd

IF=20mA

發光亮度

Peak Wavelength

l







nm

IF=20mA

峰值波長

Chromaticity Coordinates

l




X:0.27

Y:0.30




IF=20mA

色度坐标

Color Temperature

Tc



12000



K

IF=20mA

色温

Forward Voltage

Vf

8.4

9.0

10.2

V

IF=20mA

正向電壓

Reverse Current

IR





50

uA

VR=5V

反向漏電流

Suggestion Forward Current

IF

3

5-10

15

mA



(建議)使用正向電流

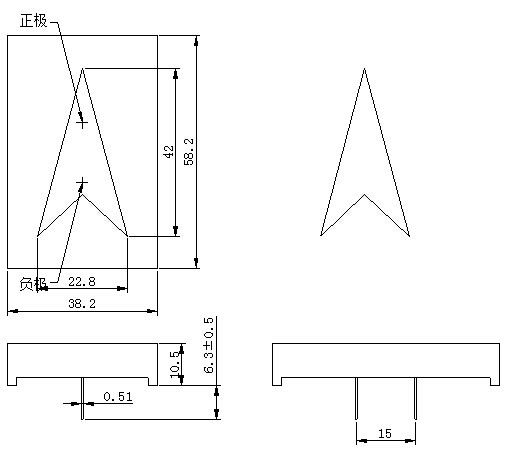

2.  外型尺寸(Package Dimension):



3.  電路原理圖(Internal Circuit Diagram):
