5mm Traffic light LED Diode
Since 1999, We only produce 7 segment LED display, LED dot matrix, LED bar graph, LED diode and SMD LED.
1. 光電參數 Electrical Optical characteristics (Ta = 25℃):
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
|
參數名稱 |
符號 |
最小值 |
典型值 |
最大值 |
單位 |
測試條件 |
|
Luminous Intensity |
IV |
R:4000 Y:4000 G:5000 |
|
R:6000 Y:6000 G:9000
|
mcd |
IF=20mA |
|
發光亮度 |
||||||
|
Peak Wavelength |
lｐ |
|
|
|
nm |
IF=20mA |
|
峰值波長 |
||||||
|
Dominant Wavelength |
lｄ |
R:620 Y:588 G:505
|
|
R:625 Y:595 G:510
|
nm |
IF=20mA |
|
主波長 |
||||||
|
Spectrum Line Half-Width |
△l |
|
|
|
nm |
IF=20mA |
|
頻普半寬 |
||||||
|
Forward Voltage |
Vf |
R:1.7 Y:1.7 G:2.7
|
- |
R:2.4 Y:2.4 G:3.4
|
V |
IF=20mA |
|
正向電壓 |
||||||
|
Reverse Current |
IR |
|
|
5 |
uA |
VR=5V |
|
反向漏電流 |
||||||
|
Suggestion Forward Current |
IF |
3 |
5-10 |
15 |
mA |
|
|
(建議)使用正向電流 |

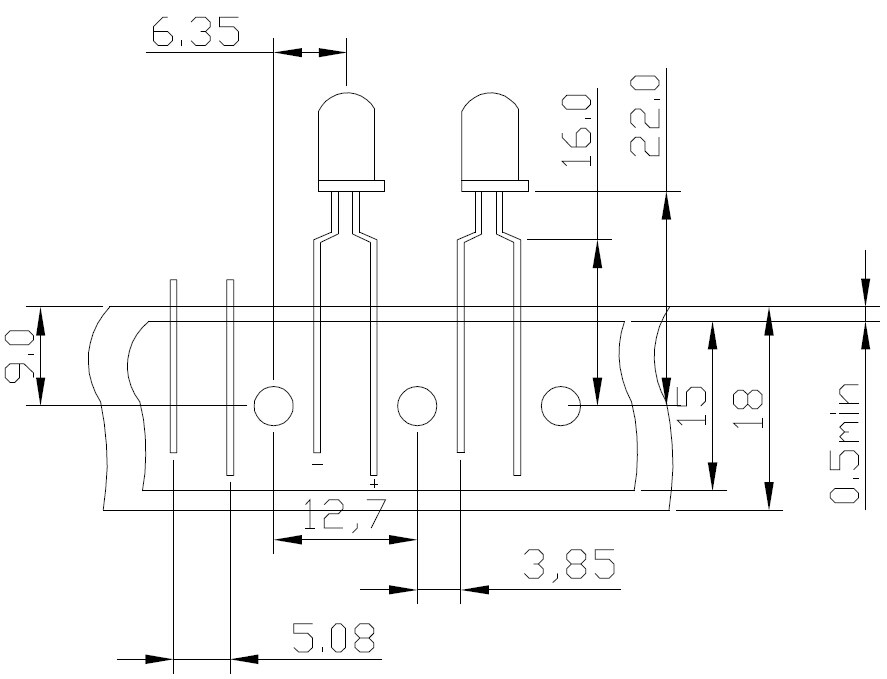

2. 外型尺寸(Package Dimension):
3. 電路原理圖(Internal Circuit Diagram):
